MicroBubbler | Micro Bubble Injector

Name: MicroBubbler | Micro Bubble Injector
Brand: Grow Greenie
Price: 24.95 USD
Availability: InStock

$24.95 USD

~~$29.95 USD~~ $24.95 USD

Sale Sold out

Shipping calculated at checkout.

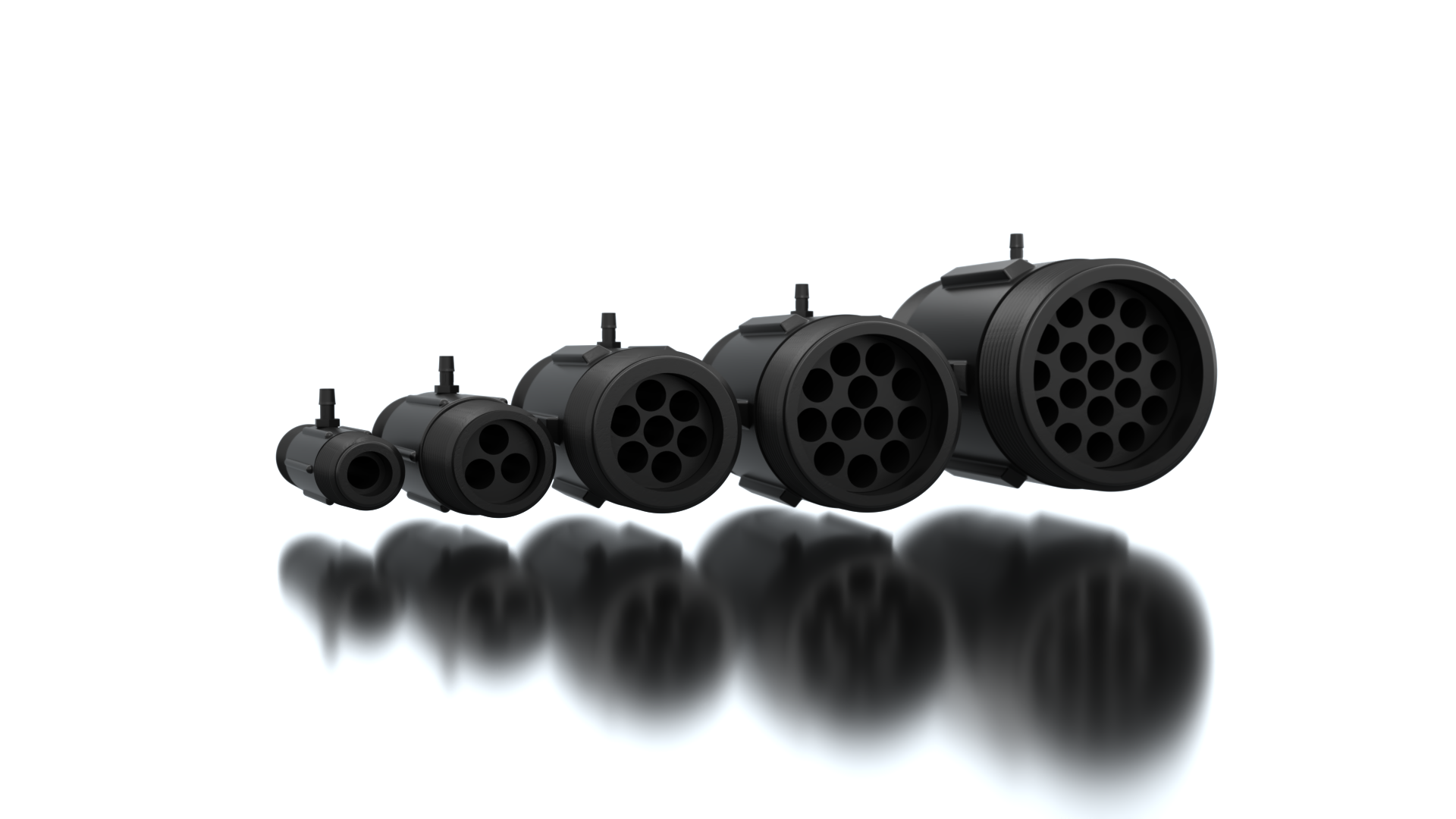

Size .5" TEE (pump flow min-max 5,000-8,000LPH) 1" TEE (pump flow min-max 8,000-16,000LPH) 1.5" TEE (pump flow min-max 16,000-25,000LPH) 2" TEE (pump flow min-max 20,000-45,000LPH) 3" MPT TEE (pump flow min-max 45,000-80,000LPH)

Product variants

Quantity

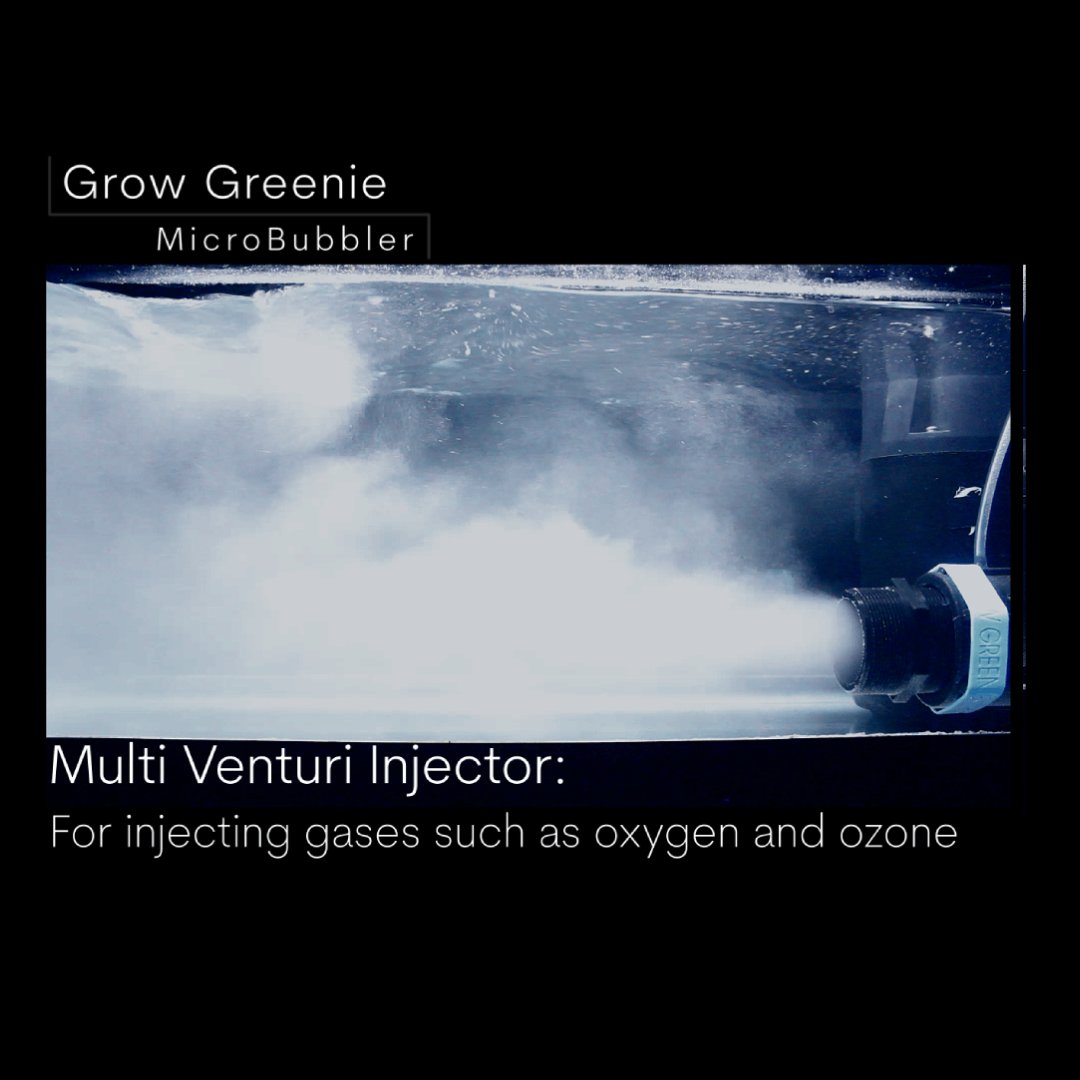

The Multi-Venturi MicroBubbler is the latest innovation for injecting pure oxygen and ozone. It can be applied to wastewater treatment, water treatment, hydroponics, agriculture, fish farming, irrigation and beyond. We do not recommend using in outdoor ponds with muck and large debris. Install as a jet head or as close to the water as possible. This can not handle a lot of back pressure from long stretches of piping. It creates very low outflow pressure. This is a MPT (Male Pipe Thread) venturi

Must use the included air hose flow valve to reduce air flow below .1 L/min: This reduction in air flow is what creates the microbubbles and controls bubble size. Air hose barb is 3/16" ozone rated PP

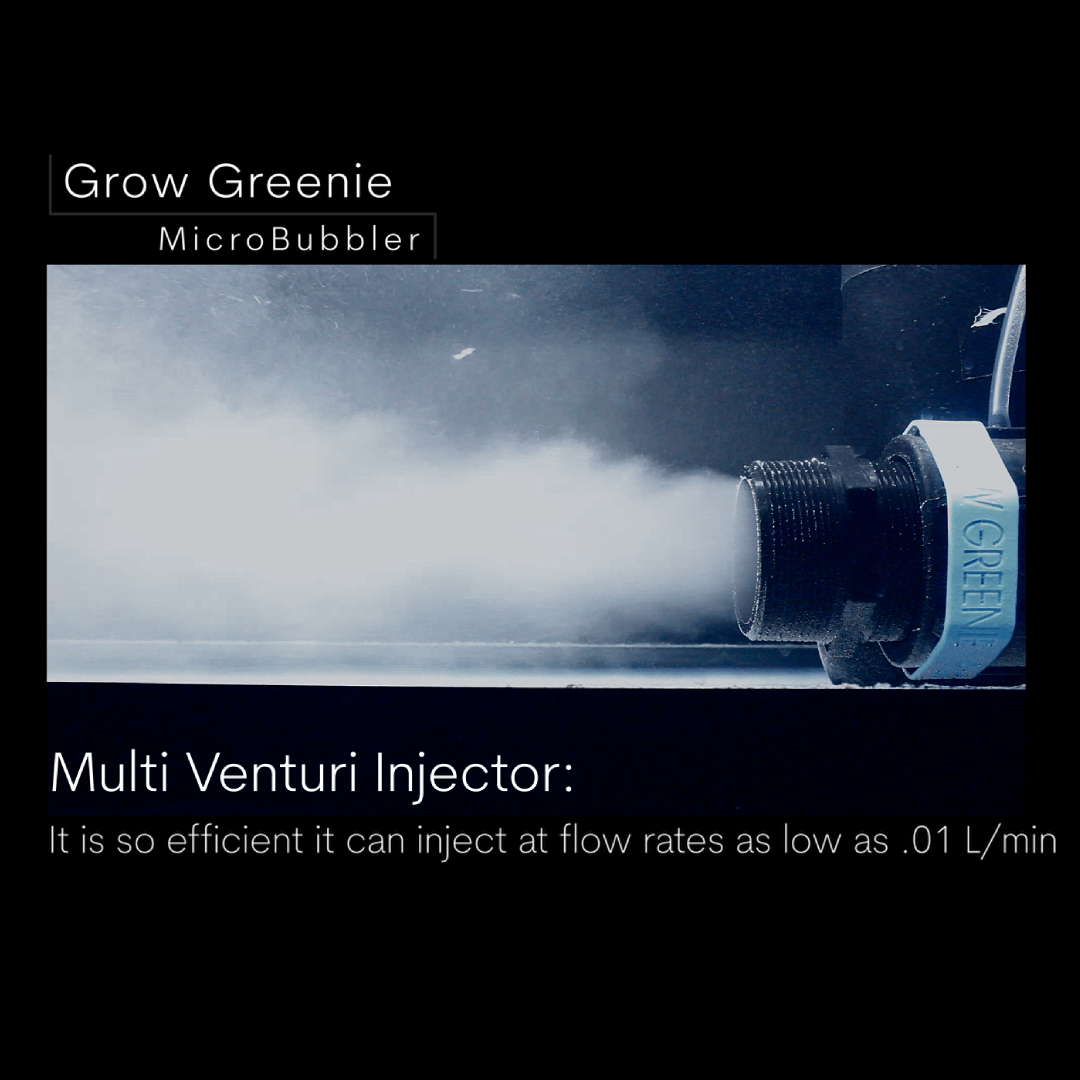

This patented technology revolutionizes the way microbubbles are created from a venturi. Fill your tank or reservoir with millions of micro bubbles using a plurality of small venturis. It can inject with extremely efficient flow rates as low as .05 L/min.

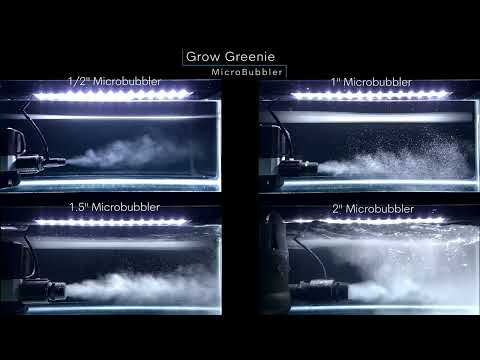

Please watch the size comparison video for visual reference of various size models and how much microbubble production each produces.

Patented Multi-Venturi

U.S. Patented and International Patent-Pending

Made in the USA

All of our devices are designed and made in the USA. Materials are sourced from only domestic USA manufacturers with high standards of quality and durability.

Materials

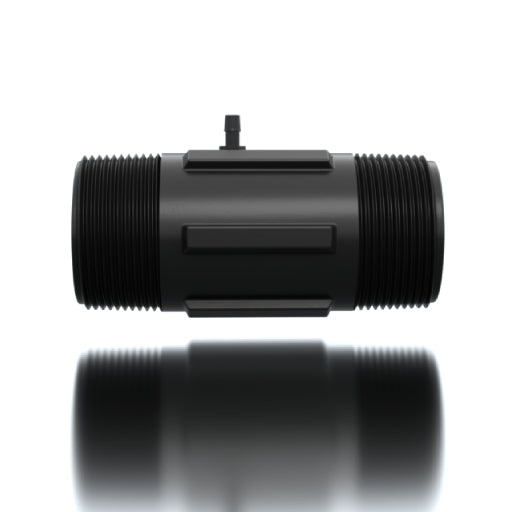

Manufactured in Glass Reinforced Polypropylene. (Heavy Duty SCH 80)

Shipping & Returns

Shipping rates are calculated at checkout. All orders are processed in 1-2 business days. We have a 30-day return policy. To start a return, you can contact us at info@growgreenie.com. We will refund the full order amount minus the shipping costs for the return. For the full Return Policy click here.

View full details

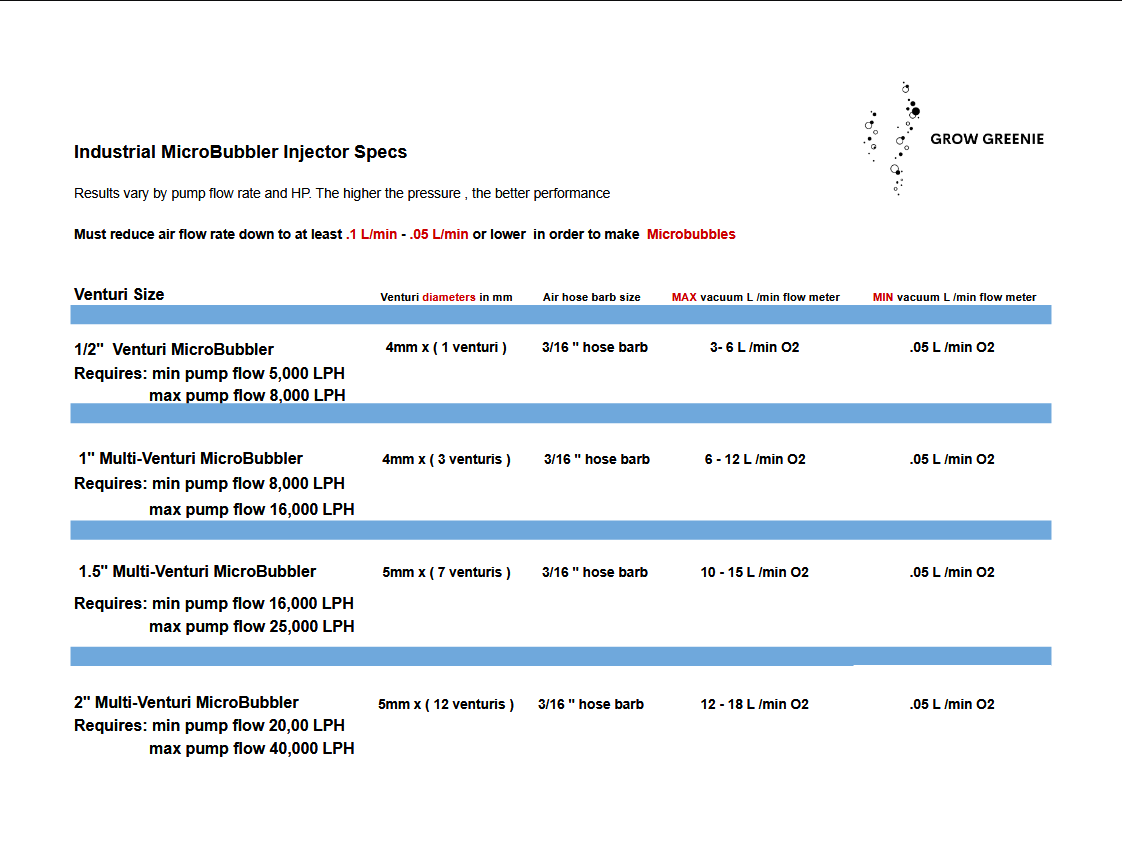

Pump Requirements & Flow Rate

1" MicroBubbler
minimum pump flow rate of 8,000 L/H (2,100 G/H)
1.5" MicroBubbler
minimum pump flow rate of 16,000 L/H (4,200 G/H)
2" MicroBubbler
minimum pump flow rate of 20,000 L/H (5,200 G/H)

Maintenance & Operation

Must use the included air hose flow valve to reduce air flow: This reduction in air flow is what creates the microbubbles.

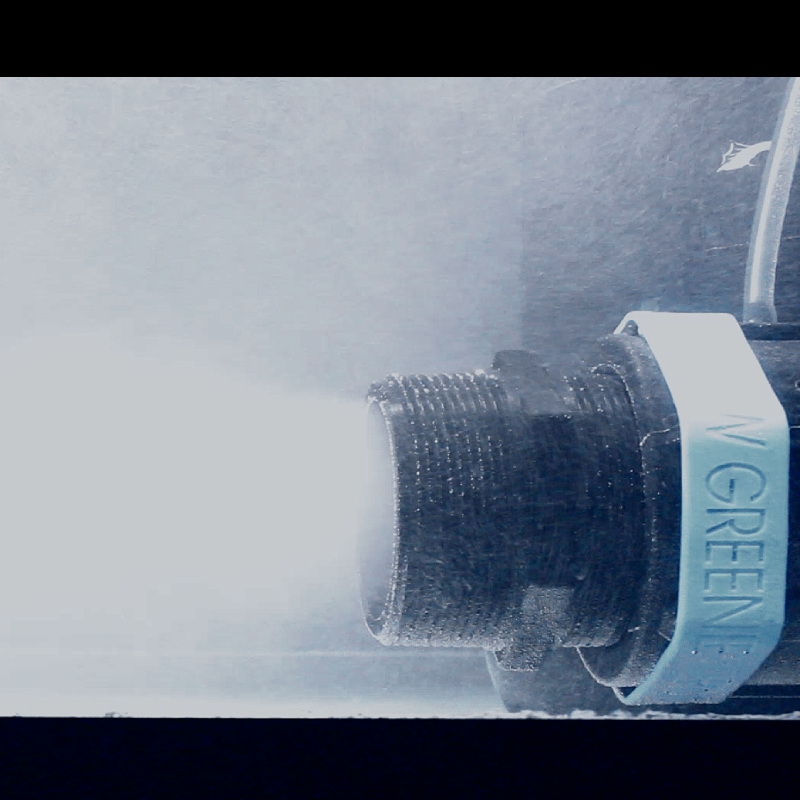

DO NOT REMOVE the threaded nipple on the outflow side - it is crucial for creating suction. When using as a jet head, keep the outflow nipple on or use an extension of PVC piping to bypass back into the main line.

You will need a 3/16" air hose

Included: An air hose flow valve (to control bubble size) and back flow check valve.

Maintenance: Use compressed air to blow into the air inlet. This will help blow out any debris built up on the inside.

Revolutionize Your System

Microbubble Injector
Used for injection of gases or liquid fertilizers. After injection liquid fertilizers ensure that clean water is passed through the air tubing and device to keep it clean and unclogged.
Control the Bubble Size
By using a flow valve or flow meter you can control how fine of a bubble you want. Reducing air flow under .1 L/min will give you microbubbles.

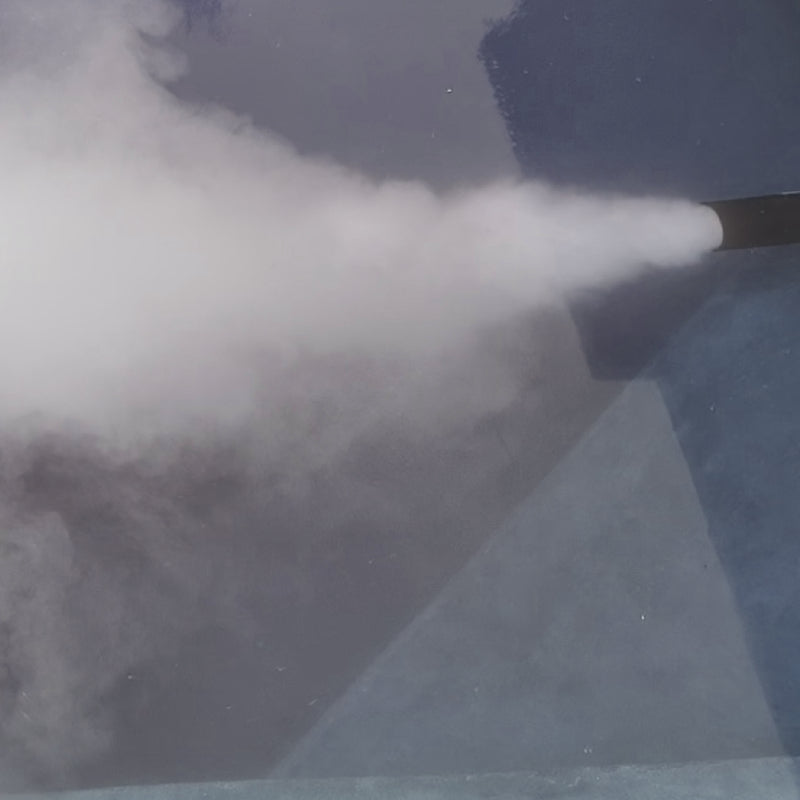

Inline Tee or Jet Head
Use the MicroBubbler inline on piping or as a jet head in a tank or reservoir. Manufactured with MPT threaded connections.
Reduce Energy Costs
Save on expenses by eliminating the requirement for large and costly machinery or air compressors. Simply connect it to any water pump that meets recommended minimum flow rates.
